Explosion-proof motor vibration sensor

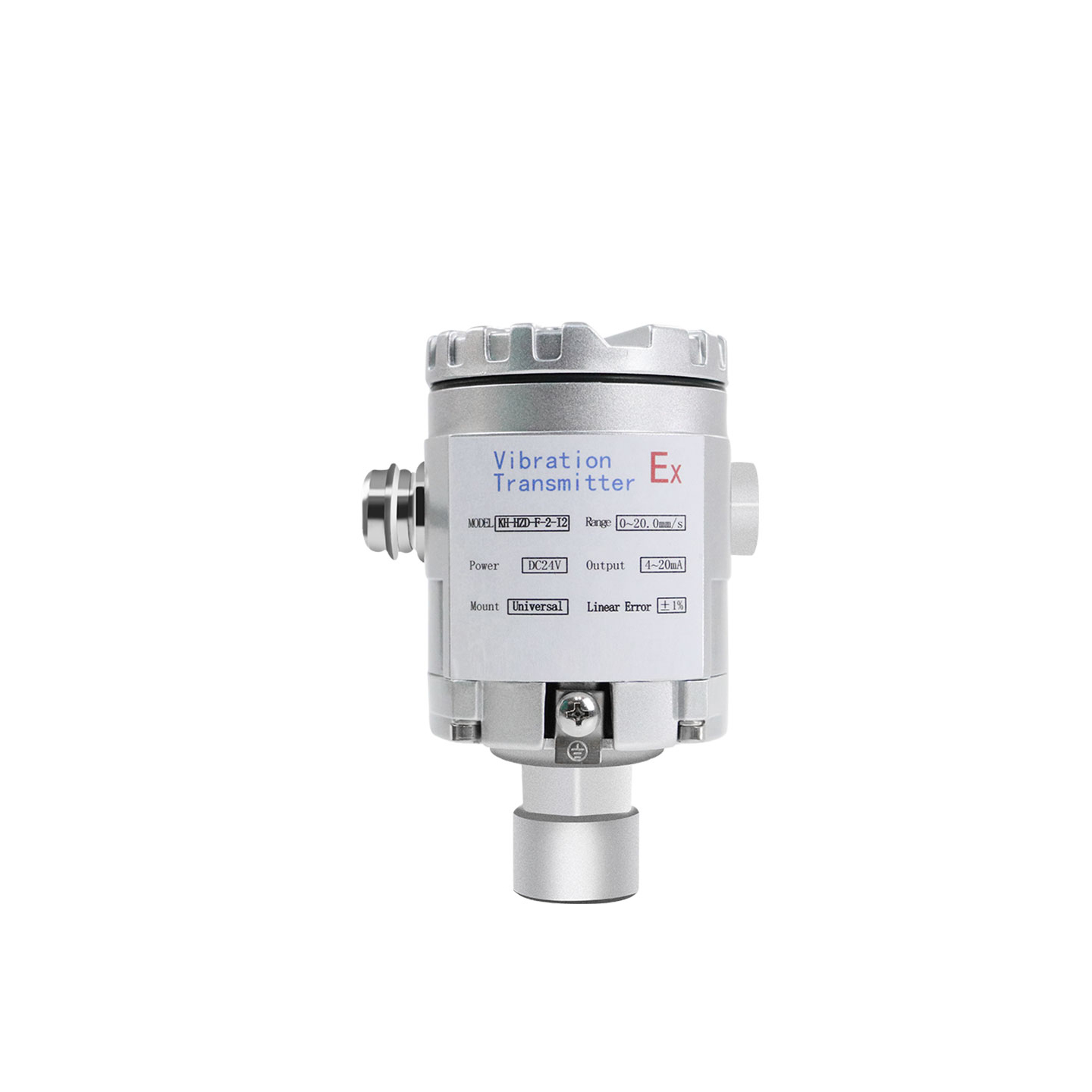

Product overview

The KH-HZD-F series vibration sensor is an integrated sensor that can be directly installed on various types of motors. It is widely used in various thermal power plants, cement plants, machinery plants, blower plants, paper mills, coal mines, and is designed to achieve high-precision vibration measurement systems in industrial applications.

Product features

Vibration velocity ,vibration displacement measured

4-20mA output, 2-wire, 3-wire, loop powered

Interface with DCS,PLC, 4-20ma monitor &device

Process Connection: M20X1.5; 1/2’’NPT; 1/4’’NPT

Electrical connector: air plug, water-proof plug

Explosion-proof, water-proof house for various complicated environment

Used for

Steam turbine, Compressors, Motors, Blower, Fans

Pumps, Centrifugal pump, Centrifuge

Specification

Measured vibration	Vibration velocity/displacement
Frequency response	5-1000HZc
Natural frequency	5HZ
Vibration velocity	0-10mm/s, 0-25mm/s,0-50mm/s
Vibration displacement	0-100um, 0-200um, 0-500um
Output	4-20mA, 3 wire; 2 wire option
Output impedance	≤500 ohm
Max acceleration	10g
Measure direction	Vertical or horizontal directly
Process connection	M20 X1.5; 1/2NPT; 1/4’’NPT
Electrical connector	Air plug; water-proof ,option
House material	Water-proof, explosion-proof case
Working ambient	T: 30℃ to 50℃; ccH: ≤90%
Size/weight	φ70x115mm/1.4kg
House dimension	OD:70mm, ID: 57mm, H:115mm
Power supply	24VDC

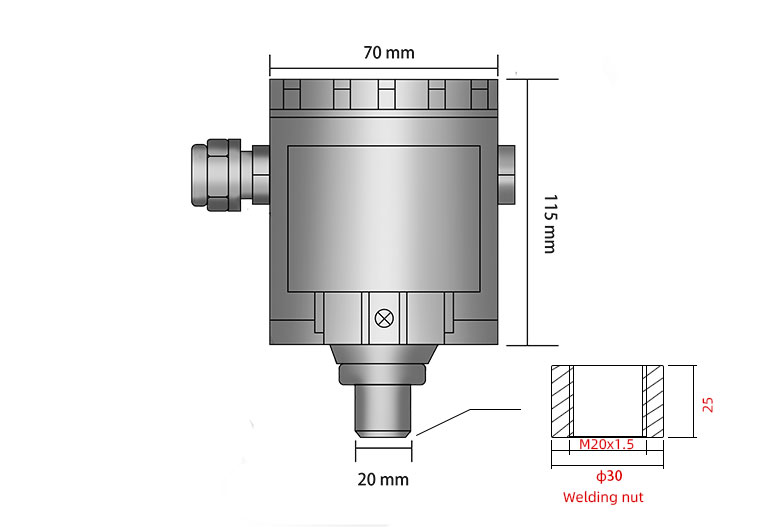

Size


Use cases

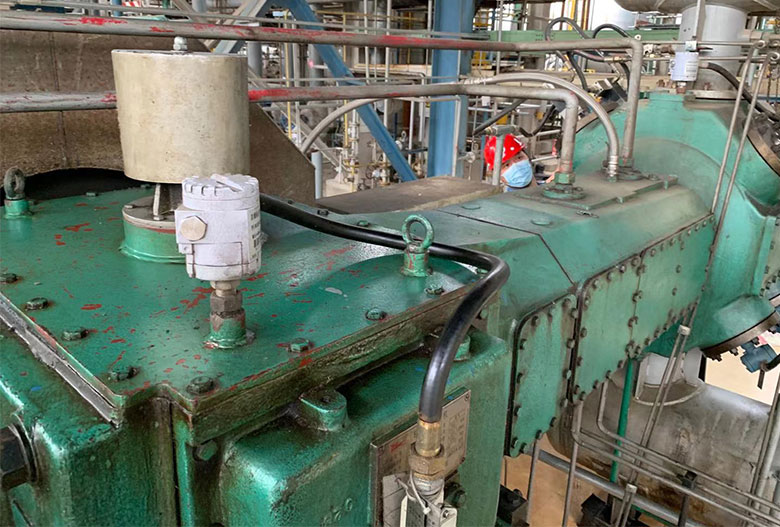

This is a use case we used in a large power plant. Our vibration sensor can be directly installed on the motor. After installation, it reduces many safety hazards in the factory.


Order Code

KH-HZD-F Vibration sensor
Order Code: E.g.: KH-HZD-F-Z1				Description
KH-HZD-F-	X	X	X	KH-HZD-F vibration sensorc
Range	-Z1			Vibration velocity : 0-10mm/s
	-Z2			Vibration velocity: 0-25mm/s
	-Z 3			Vibration velocity: 0-50mm/s
	-D1			Vibration displacement: 0-100um
	-D2			Vibration displacement: 0-200um
	-D3			Vibration displacement: 0-500um
	-X			Vibration displacement: customizedcc
Process Connection		P1		M20x1.5, (default), welding the nut on the measured point& screw on transmitter.
		P2		1/2’’NPT, welding the nut on the measured point& screw on transmitter
		P3		1/4’’NPT, welding the nut on the measured point& screw on transmitter
Output			1	4-20mA,3 wire (default)
Output			2	4-20mA,2 wire (default)
