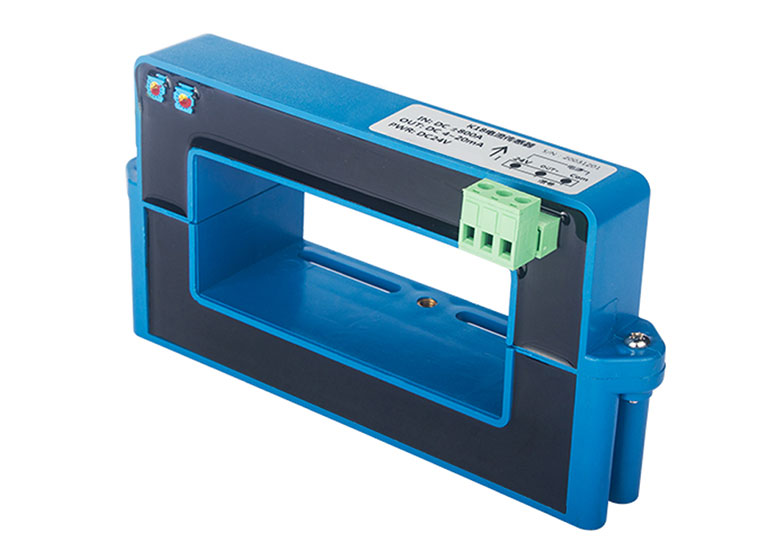

Large range current transmitter
Specification
Accuracy | 0.5% |
Linearity | 0.1% |
Power | DC12-24V / AC 110-220V |
Measure | 10A、50A、100A、。。。。。。。。。2000A |
Way | Wiring type |
Output | 4~20mA or other |
Overload capacity | 10x nominal input |
Aperture | 100x40 mm or other |
Introduction
The open close current transmitter can directly convert the AC or DC current of the tested main circuit into a DC4-20mA constant current loop standard signal output in a linear proportion, and continuously transmit it to the receiving device

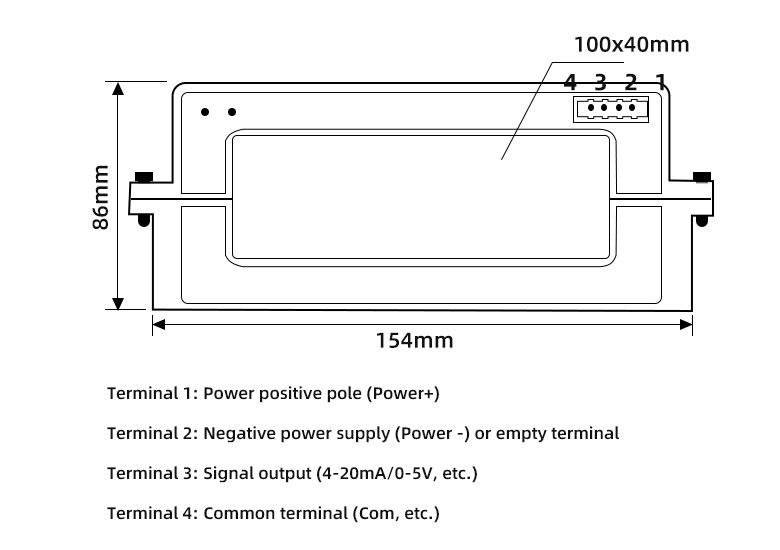

size
install
